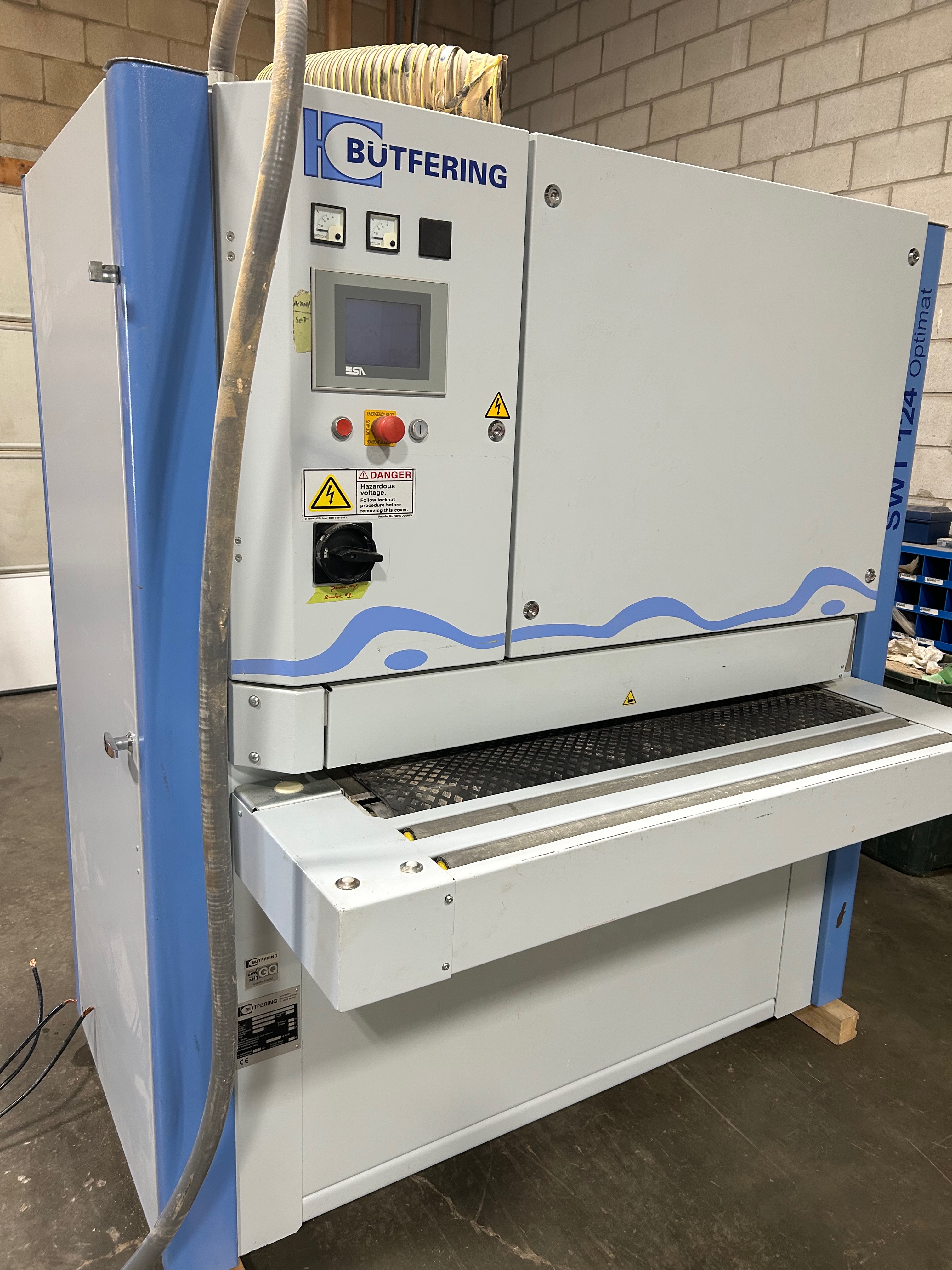

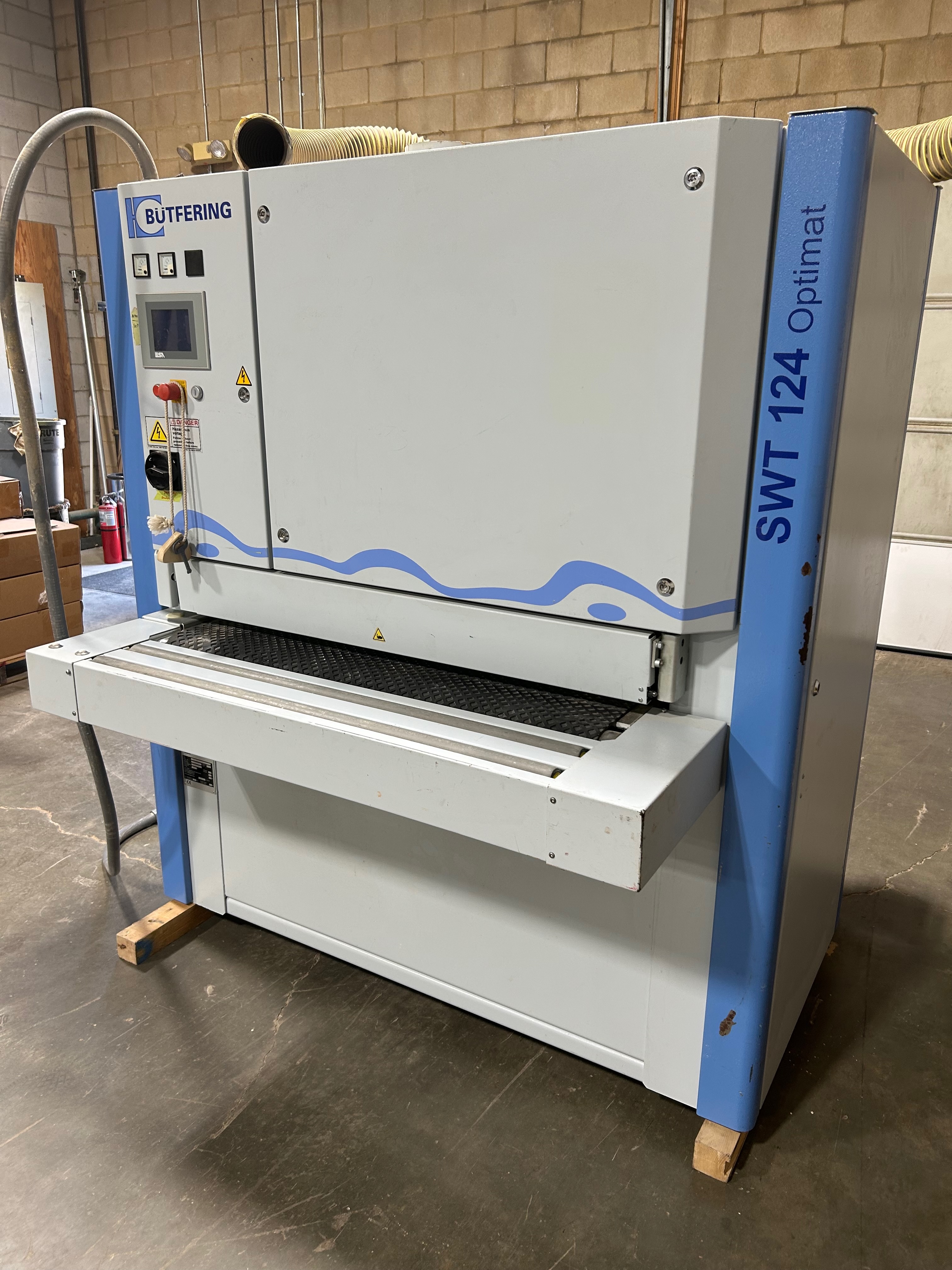

Butfering double head 43" wide belt sander with electronic segmented platen; veneer ready
Electrical requirements: 230v 3ph; 120 amps
43" x 75" belt size

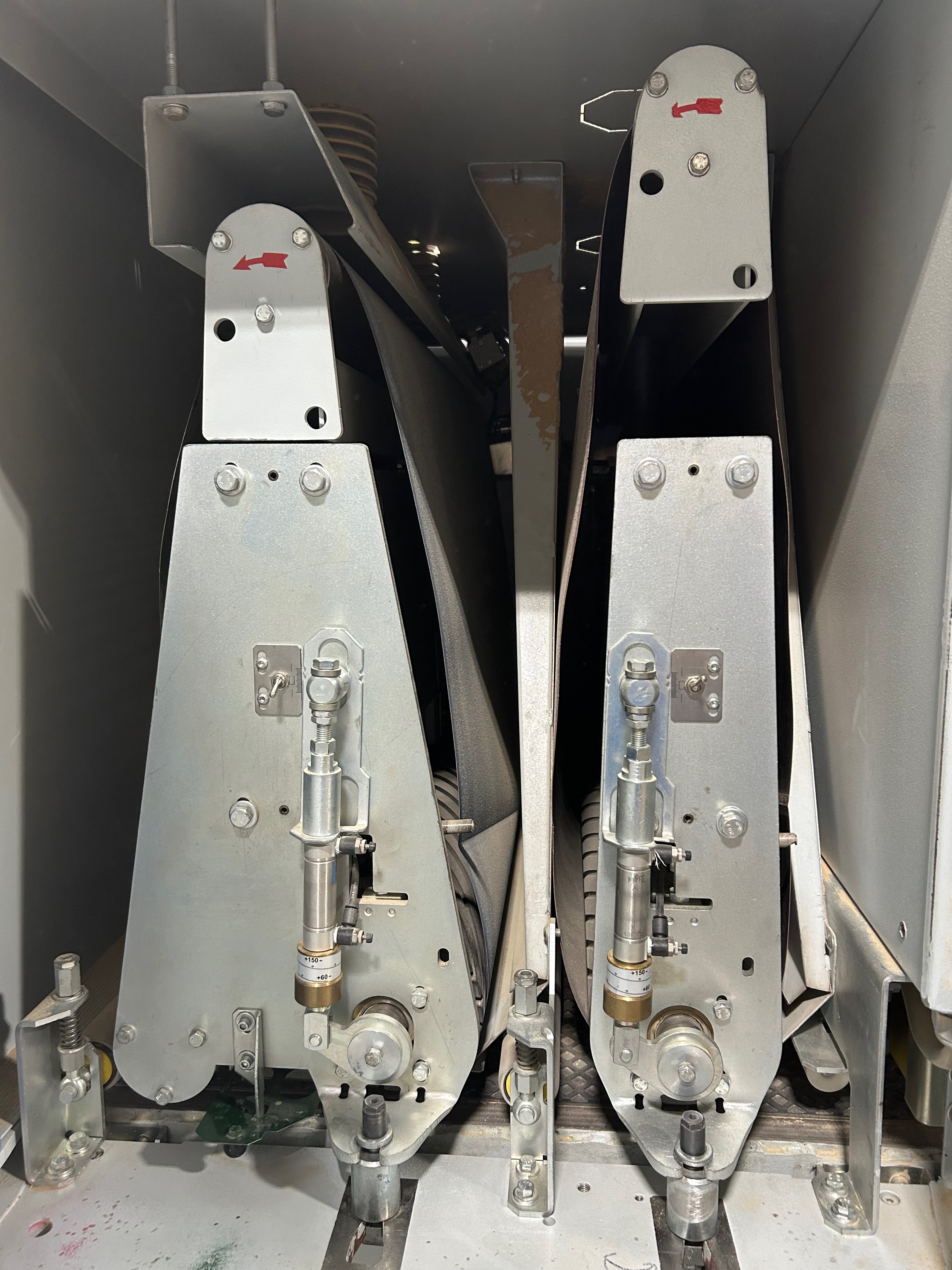

Head#1 160mm = 6.25" diameter steel contact roller with auto grit set positioning- 20HP
Head#2 65 shore rubber contact drum with electronic segmented platen, with auto grit set - 18HP
Automatic thickness set up

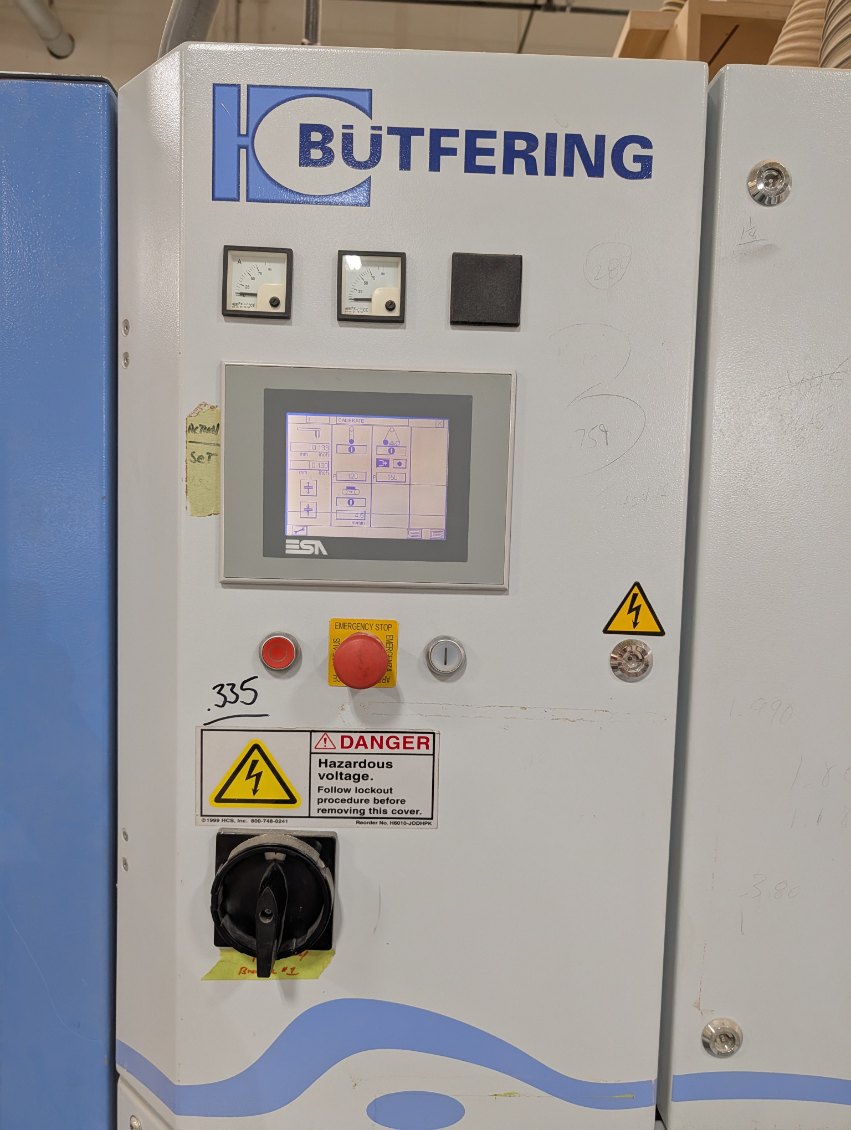

7" touch screen to create and store programs
Rubberized hold down rolls before and after each head
Variable speed by inverter: 8-42 ft/min
Automatic conveyor belt tracking
Oscillating belt blowers on finisher head
Electric eye abrasive belt tracking
Electronic motor brake
Safety interlocks on all doors
Max workpiece thickness: 6 3/8"
Dust collection requirements: 1800 cfm; (2) 6.25" ports
Weight: 3960 lbs
2010 machine, serviced by Stiles
Includes a 45kva transformer with taps at 240v and 480v 3ph
New today: $60k
Butfering 43" 2 head widebelt sander
