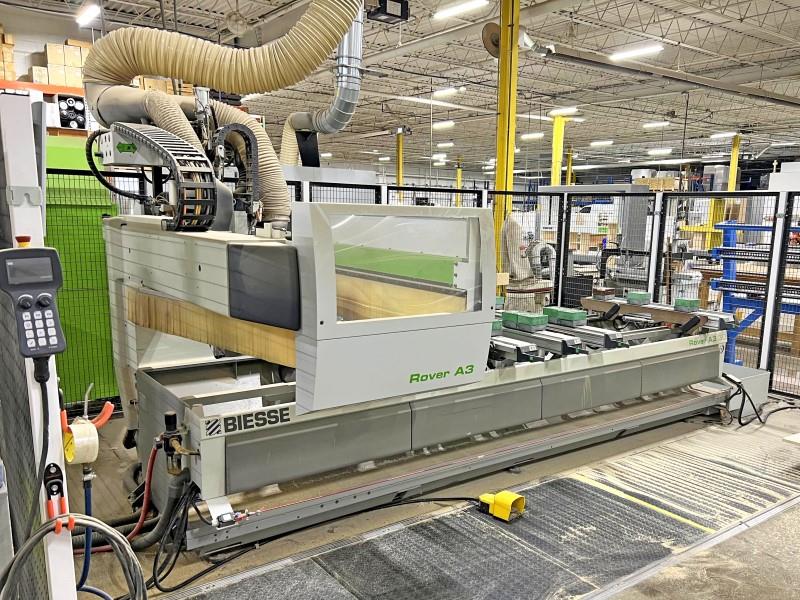

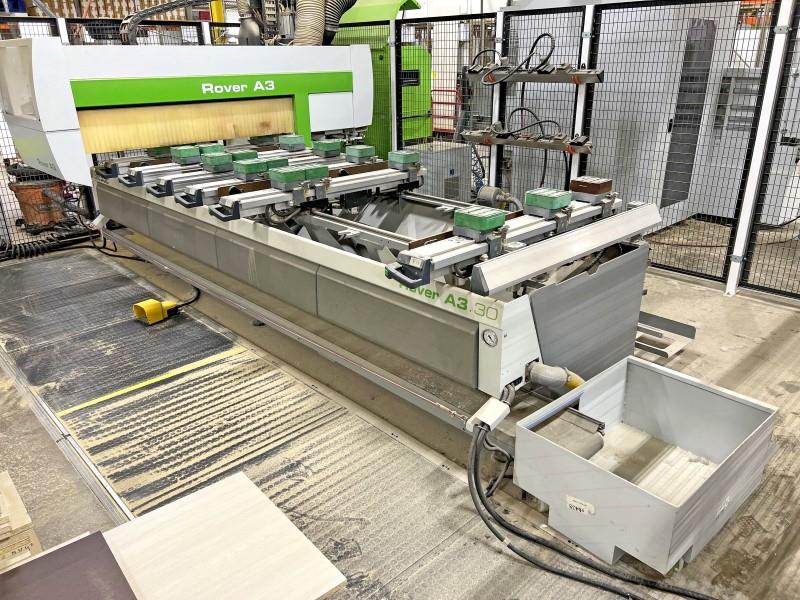

BIESSE ROVER - A 3.30: CNC Machining Center (w/ATC/Boring)
Working cap. - "X" Axis: 118" (3,000 mm) any unit; "Y" Axis: For routing, 45.2" (1,150 mm; "Y" Axis for: Boring; 49.6" (1,260 mm); "Z" Axis stroke: 7.8" (198 mm); max. material thickness: 5.9" (150 mm).
Positioning Speed Both "X & Y" Axis is: 262 FPM (80 MPM); "Z": 111 FPM (34 MPM); helical rack & pinion drive: On "X" axis; precision ball screw on: "Y & Z" Axes.
Boring Unit:
(14) Independent vertical boring spindles forming an L-configuration with: (7) Spindles in "X" Axis & (7) spindles in "Y" Axis.
(6) Horizontal spindles with: (2 + 2) in "X" axis; (1 + 1) in "Y" Axis; (1) "X" Axis grooving saw for: Max. 120 mm dia. blade.
Machining:
(1) 9.5 HP (7 kW) Vertically mounted HSD electrospindle router with: HSK F63 Adaptor.
Inverter driven 1,000 - 24,000 RPM with: Max. torque from 12,000 - 24,000 RPM.
(1) 18-Position "Ride-Along", "on the fly" automatic tool changer.

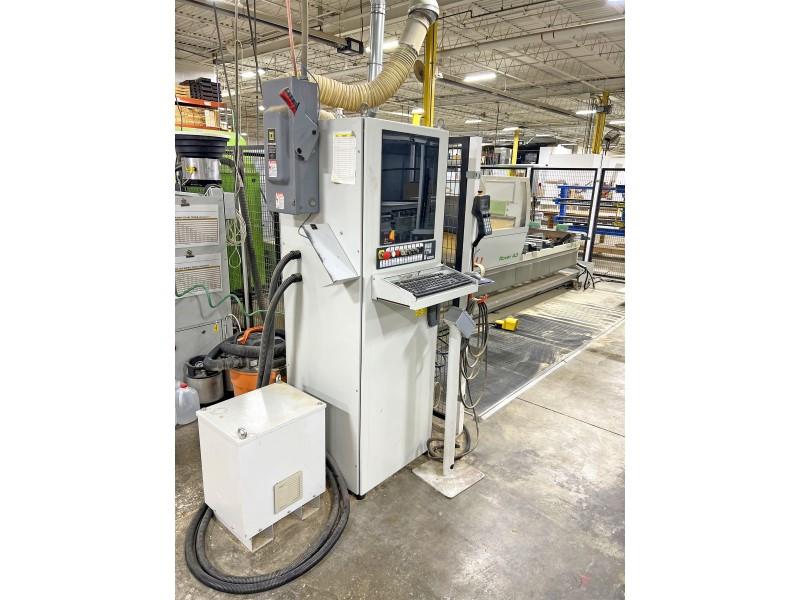

Operator & Machine Control:
PC Front-End with: BIESSE "XP600" + Windows "XP" + BIESSE "WORKS" Operating System.
