Spraying Shellac

      Finishers discuss the fine points of applying Shellac, a traditional finish that can produce exceptional results when applied with care. December 31, 2012

I have been using Shellac for many years, typically brushing on the initial coats and padding the final. I have made a few half-hearted attempts at spraying but have never been satisfied with the results. It doesnít seem to want to flow out like lacquer. I donít like wasting the stuff so I inevitably revert to my usual method. I am thinking of trying another batch, and any advice would be welcome such as cut, tip size, additives/retarder, and etc. Is anyone out there having success with this?
The gun is a CA Tech.

Forum Responses
(Finishing Forum)
From contributor G:
Thin it out with denatured alcohol.

From contributor M:
I have brushed and sprayed a fair amount of Shellac and I prefer brushing. It seems to take a lot longer to build up a film thickness when spraying. I find it faster to brush on two or three coats in one day, allow it to harden overnight, and then sand it level and buff. When I spray I still end up waiting overnight and the film thickness is much less. The sprayed finish is flatter and theoretically it should be easier to level and buff out, but it never works out that way for me. With a good brush and fresh Shellac the brush marks are easy to sand off with 400 grit. Instead of French polishing to a hand rubbed finish I sand to 1,000 grit then use 0000 steel wool. This leaves a nicely diffused surface that is still glossy and very clear. If a perfect high gloss is necessary I use automotive buffing paste.

From contributor G:
I purchase it in a can. I rarely use shellac these days. When I was starting out I used it quite a bit. I have an MDF countertop that has about 30 coats of shellac on it that I sprayed ten years ago. In the work area it is starting to wear thin. I never really had any issues with shellac. It was always a pretty easy finish to spray. I never mixed my own with flakes though.

From the original questioner:
Thanks Contributor M - you pretty much summed up my experience with it. I have resisted going to a lighter cut for the reasons you list. I might check out the retarder, I wasn't aware there was one for shellac. Iíll probably stick with what works.

From contributor M:
There are no true retarders for Shellac because it is an evaporative finish. Technically a retarder is used with coalescing and reactive finishes where there is a chemical reaction or process that can be delayed. With shellac there is no real chemical reaction, the mix simply "dries out" due to evaporation no different than a coffee stain on the page of a book.

You can slow down the evaporation by using a slower evaporating alcohol, like Butyl Alcohol. This actually makes the problem of slow-to-harden Shellac much worse. I get the best results using flake and regular denatured alcohol. The advantage of flake is that is hardens much faster. The longer Shellac is mixed with alcohol the slower it will harden. If you buy pre-mixed in a can look at the date it was made. If it is older than a year don't buy it. The fresher the better; and using flake is even better. By better I mean it dries faster. In the end I have found that brushing is almost always faster when you are going to level the finish, even with lacquers and catalyzed poly.

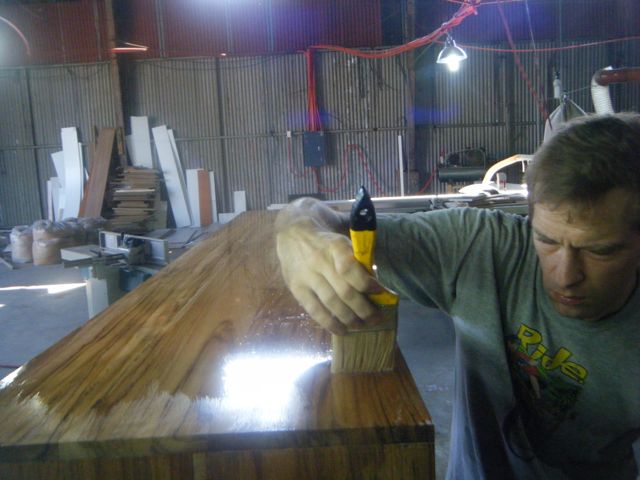

Click here for higher quality, full size image

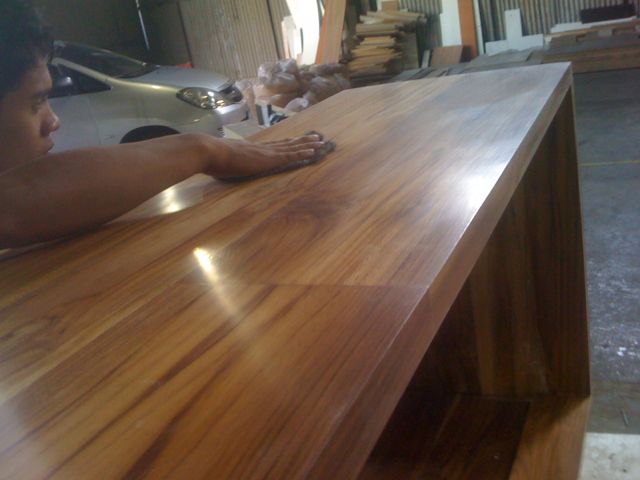

Click here for higher quality, full size image

From contributor M:
I should add that I am not a traditionalist and I mostly spray conversion varnish using HVLP. When the client is willing to pay a little extra for a hand finished job I prefer Shellac.

From contributor C:
I use shellac too, but usually to seal off contamination or for end grain and the like. I didnít know that anyone used it as a top coat anymore as there are many easier products to use; they usually have a longer shelf life and better durability. Why would you use shellac as a top coat?

From contributor M:
Personally I have not found a product that has the clarity, sheen, and ability to build a thickness without it looking like plastic. I have used various pre and post catalyzed lacquers, Conversion Varnish, waterbased poly, and the usual products we all try.

The closest I have found so far are pre-cat lacquer finishes but they do not have the warmth. You can see when you sand through a coat, and they all start showing their age after five to ten years. For general cabinetry this is perfectly ok. In fact I prefer Conversion Varnish for 90% of my work. Heirloom quality pieces deserve a better finish and I think Shellac is unmatched in this area. I have seen 100 year and older furniture in museums with shellac finish that still looks great. It never ages, or at least it ages on a geological time scale. Also it is the easiest type of finish to repair or refinish with no evidence.

Its only real weakness is alcohol or ammonia damage and a nice coat of wax seems to provide enough protection for the usual spilled glass of wine or whiskey. Have you found a modern finish that gives that perfect finish? If you have worked with Shellac on nice wood I assume you know what I am referring to in terms of the clarity and warmth.

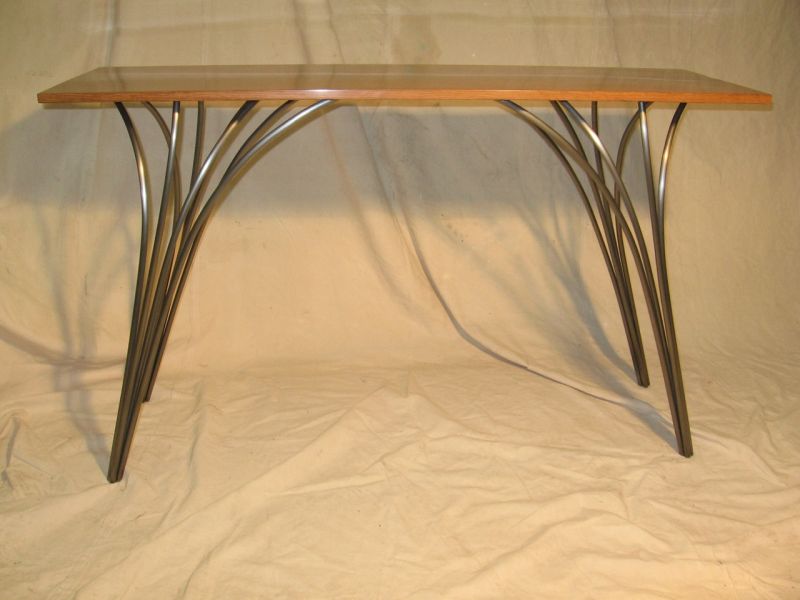

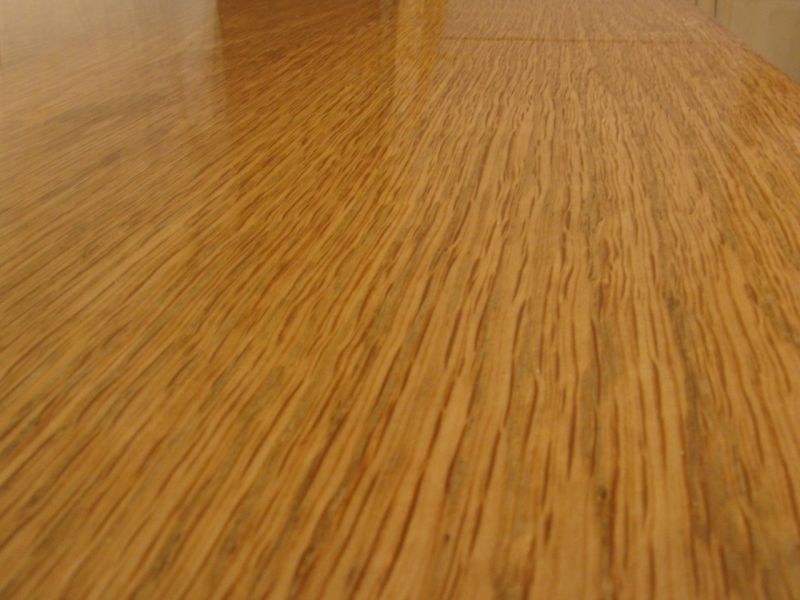

Below is an example of a project where I used Shellac. This was a commissioned project where the client provided the wood. The single board was hewn from an oak tree his great grandfather cut down a hundred years ago. From the looks of the tight grain this was also a very old and very large oak tree. It still had the typical heavy pores of oak so I used a French polishing technique to fill the grain with sawdust and Shellac. I then brushed on four or five coats of Shellac, leveled with sanding block, buffed up to 000 steel wool, and waxed. Every piece I have finished with Shellac elicits comments from casual people with no knowledge about fine furniture. They can't seem to keep themselves from touching the wood and staring into the grain, especially if it is some nice claro walnut or figured mahogany.

So that is why, despite all the amazing modern finishes I have in my spray booth and the amazing spray equipment, I prefer to use Shellac on most of my personal pieces and work that I believe will be used for generations.

Click here for higher quality, full size image

Click here for higher quality, full size image

From contributor C:
I use shellac from flakes (I import it) and I mix it with grain alcohol. You just canít get shellac in my neck of the woods. I still find it really useful. In any case I mostly use a pre-cat as my go to finish and have not had any problems with durability. I have graduated through the years from wipe on poly to water based poly to nitro lacquer to pre-cat and perhaps the biggest problem I have found has been the oil based stuff that just takes too long to dry.

Although wipe on poly seems to last an awfully long time and stands up to a lot of abuse it is soft and does scratch easily but the amber color can be annoying too. I don't get too many calls for heirloom quality although I would love to spend that kind of time on solid wood furniture. Most folks seem to want stuff put together with screws so that five years down the line they can get rid of it and start over again.

From contributor M:
I understand having to make the products that will pay the bills. I have only been able to show off my skills a few times. Luckily I am now in a more creative market where clients want something different. However budget is still an issue. Most of the time I use a conventional cabinet grade finish due to the pricing. Occasionally when a project is nice enough I will put in the extra effort at my own expense to make the project feel complete in my eyes.

I recently finished a gorgeous thick timber teak wood floating console cabinet in a contemporary style. The client would have been perfectly happy if I had used a typical two coat post-cat or Conversion Varnish, but it was an expensive piece and I could not live with myself knowing it left my shop 90% perfect. So I spent three days spraying, brushing, and leveling and finish a perfect finish. Definitely not in the budget! The piece is really very nice and will be grabbing the attention of visitors for many years.

From contributor C:
Yes I know the feeling. I often spend way more time on a project than the budget allows for simply because I refuse to let 90% go out (I have yet to see 100%). I may not get an immediate monetary reward but I get plenty of recommendations and a feeling of profound feeling of satisfaction that comes with a job well done. I will admit that when I use melamine on a job itís usually for the money.

From the original questioner:
Like Contributor M, in a previous life I have sprayed miles of NC lacquer (my second favorite) , as well as pre-cats and conversion varnish. I also played with waterborne, not a fan of these.

Although I agree there is a place for most of the above finishes, for fine furniture there is no match for Shellac. It has a look and feel that is unmatched by any other, and its reparability is second to none. When you open the doors to a case piece it even smells good. It also is the best barrier to water vapor. It has also withstood the test of time. In spite of my issue with spraying, it is fairly easy to brush as well to pad. It is sensitive to standing water and alcohol but again it is easily repaired by rubbing out.

As an anecdote, early in my career I made a game table for a Doctor and finished it with Shellac. I moved away for a few years. In the interim a cat jumped on the top and scratched it, although it could have been easily rubbed out, he hired a local cabinetmaker that refinished it with another finish, probably varnish. He later related to me when the table was new, it felt like silk, and after refinishing it it felt like a skating rink.

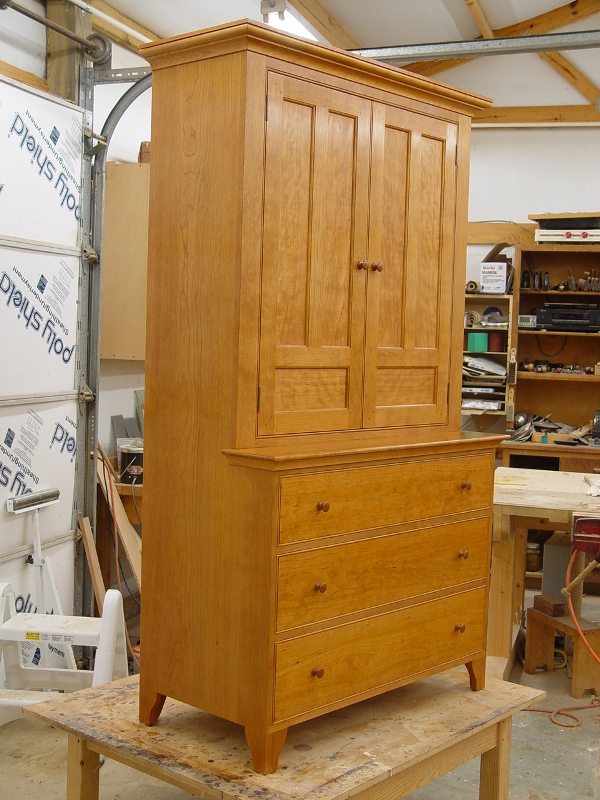

Click here for higher quality, full size image

Would you like to add information to this article?
Interested in writing or submitting an article?
Have a question about this article?

Have you reviewed the related Knowledge Base areas below?
  • KnowledgeBase: Knowledge Base

  • KnowledgeBase: Finishing

  • KnowledgeBase: Finishing: General Wood Finishing

    Would you like to add information to this article? ... Click Here

    If you have a question regarding a Knowledge Base article, your best chance at uncovering an answer is to search the entire Knowledge Base for related articles or to post your question at the appropriate WOODWEB Forum. Before posting your message, be sure to
    review our Forum Guidelines.

    Questions entered in the Knowledge Base Article comment form will not generate responses! A list of WOODWEB Forums can be found at WOODWEB's Site Map.

    When you post your question at the Forum, be sure to include references to the Knowledge Base article that inspired your question. The more information you provide with your question, the better your chances are of receiving responses.

    Return to beginning of article.

    Refer a Friend || Read This Important Information || Site Map || Privacy Policy || Site User Agreement

    Letters, questions or comments? E-Mail us and let us know what you think. Be sure to review our Frequently Asked Questions page.

    Contact us to discuss advertising or to report problems with this site.

    To report a problem, send an e-mail to our Webmaster

    Copyright © 1996-2021 - WOODWEB ® Inc.
    All rights reserved. No part of this publication may be reproduced in any manner without permission of the Editor.
    Review WOODWEB's Copyright Policy.

    The editors, writers, and staff at WOODWEB try to promote safe practices. What is safe for one woodworker under certain conditions may not be safe for others in different circumstances. Readers should undertake the use of materials and methods discussed at WOODWEB after considerate evaluation, and at their own risk.

    WOODWEB, Inc.
    335 Bedell Road
    Montrose, PA 18801

    Contact WOODWEB

  • WOODWEB - the leading resource for professional woodworkers

      Home » Knowledge Base » Knowledge Base Article
