Pullouts and drawer slides

6/21/17
Mike Fuson

Seems like we're doing more and more pullouts. Spice racks, utinsel holders, cookie sheet holders, etc. I would like to use undermounts on everything but some are to small for the front clips. Ball bearing slides are ok but finicky especially when you need at least one at the top to stabilize. I'm looking for ways to make these things a little easier to install and adjust. any tip or tricks or products that makes it easier? And by the way, I'm well aware that I can purchase units and it's cheaper to do that, but the things I'm doing are more custom and my clients like the ones I build and are willing to pay.

6/21/17       #2: Pullouts and drawer slides ...
Kip Stevens

Are you aware that some manufacturers have narrow clips for under mount slides?

6/21/17       #3: Pullouts and drawer slides ...
Leo G

I use three undermount slides. 2 on the bottom and one on the top.

Hard to see in the picture. But you need to make a cut out for the top slide. But in the end it's pretty invisible. Keeps narrow pullouts from tipping.


View larger image

6/21/17       #4: Pullouts and drawer slides ...
Mike Fuson

Kip, now that you mention it I do think that Salice makes a smaller clip. I'll have to research that.
Leo, I'm liking your design. Are you using clips on these? If so what do you do for narrow pullouts?

6/21/17       #5: Pullouts and drawer slides ...
Leo G

In this case I was using the inset lock which has left/right and in/out adjustment. If you are doing overlay then you don't need the inset lock, just the left/right adjust.

I found a CAD drawing I did for the pull out design. Not sure how much help it will be, but it's better than starting from scratch.


View larger image

6/21/17       #6: Pullouts and drawer slides ...
Mike Fuson

That does help Leo, thanks. Another question, I did a couple pullouts recently that look almost identical to yours, my concern was the shelves moving from side to side on the pins. Any concern on that or do you have some way that prevents them from doing that?

6/21/17       #7: Pullouts and drawer slides ...
Leo G

I don't remember what I did. But it was one of 2 things.

Either I placed the shelf pin holes far enough out that they prevented the shelves from moving because the 1/4" sides on the shelving extended down below the shelf to trap it.

or

I put a shallow groove on the bottom of the shelf that the shelf pin sits in restricting it's movement.

Most likely the 2nd thought.

6/21/17       #8: Pullouts and drawer slides ...
Leo G

OK, I just looked at my picture closer, and it was the first thought. I can see my pin holes are much closer to the edge than I normally make them.

6/22/17       #9: Pullouts and drawer slides ...
Dennis Bean  Member

Website: http://www.saliceamerica.com

Hey Mike,

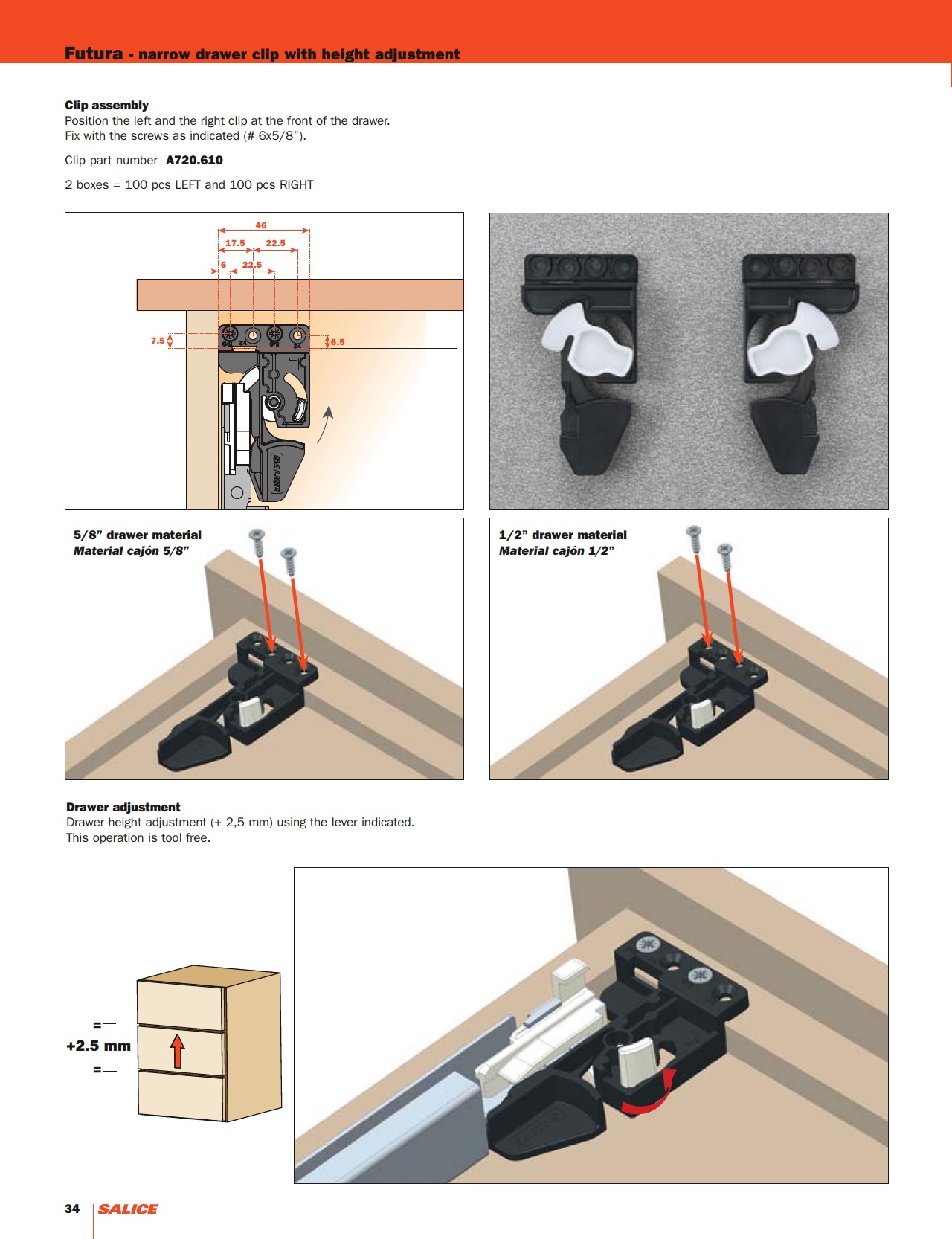

Here are the details for the Salice Futura narrow front clip. Let me know if you would like a sample set to look at.

Thanks,

Dennis


View higher quality, full size image (1280 X 1666)

6/22/17       #10: Pullouts and drawer slides ...
Mike Fuson

Yes! That would be great Dennis. Let me know if you need my address again. Thanks
