Blind corner pull outs


I have a kitchen coming up and owner wants one of those blind corner pull outs.
Prices seem to vary wildly with KV @ $868, rev a shelf $1,469 and Hafele $750.
Does any one have any pros/cons with using these?

4/10/14       #2: Blind corner pull outs ...
Dave Edgerton  Member

Use the Wari corner from hafele. Should run you about 400 bucks. It is under the vauth sagel catalogue. 750 is too expensive for any corner pullout in my opinion.

4/10/14       #3: Blind corner pull outs ...
Dennis Bean  Member

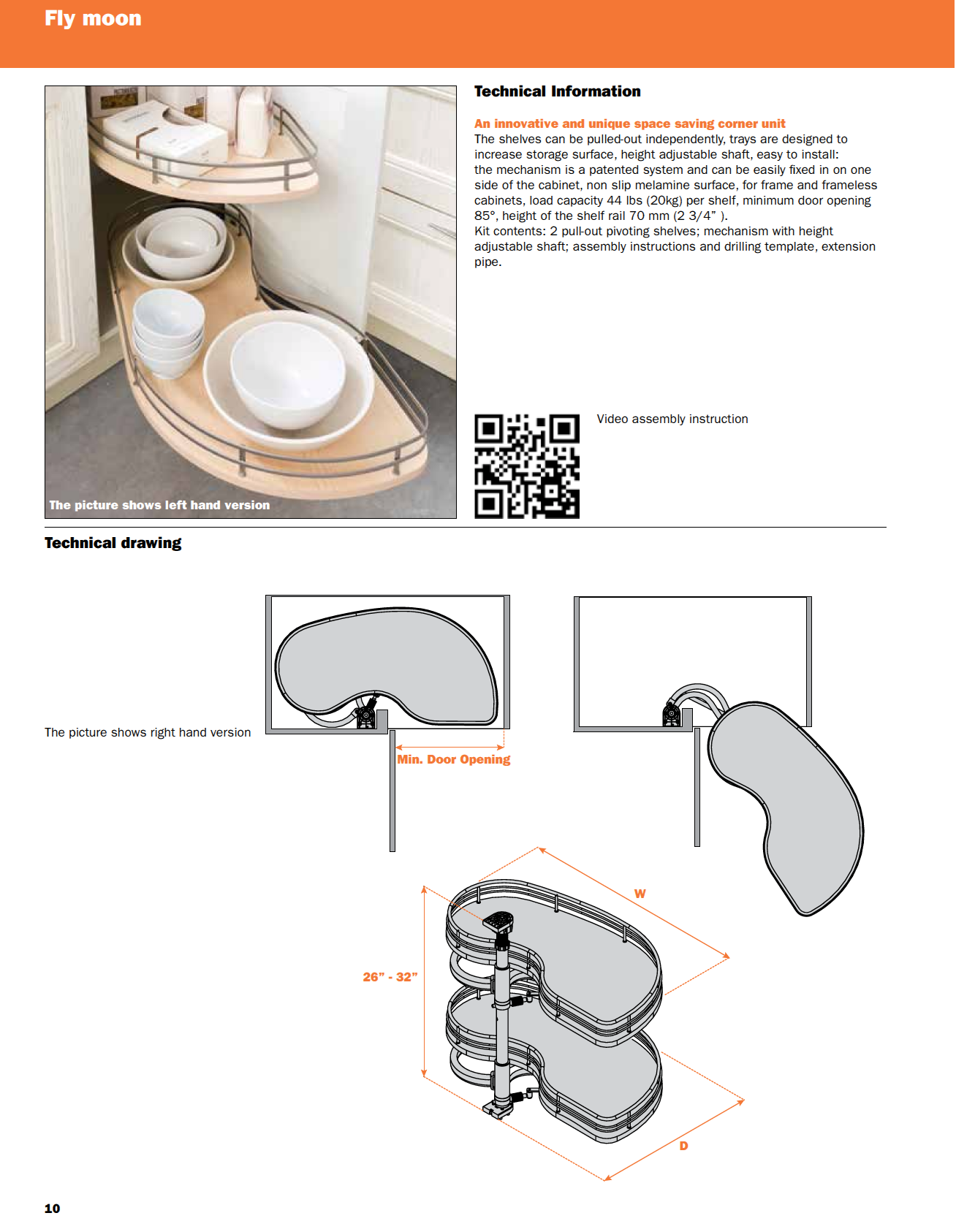

Here are the details for the Salice Fly Moon blind corner unit. You can check with your Salice distributor for prices. Also, attached is a video for the installation.

View higher quality, full size image (1308 X 1686)

Salice Blind Corner Video

4/11/14       #4: Blind corner pull outs ...
Jr Lee  Member

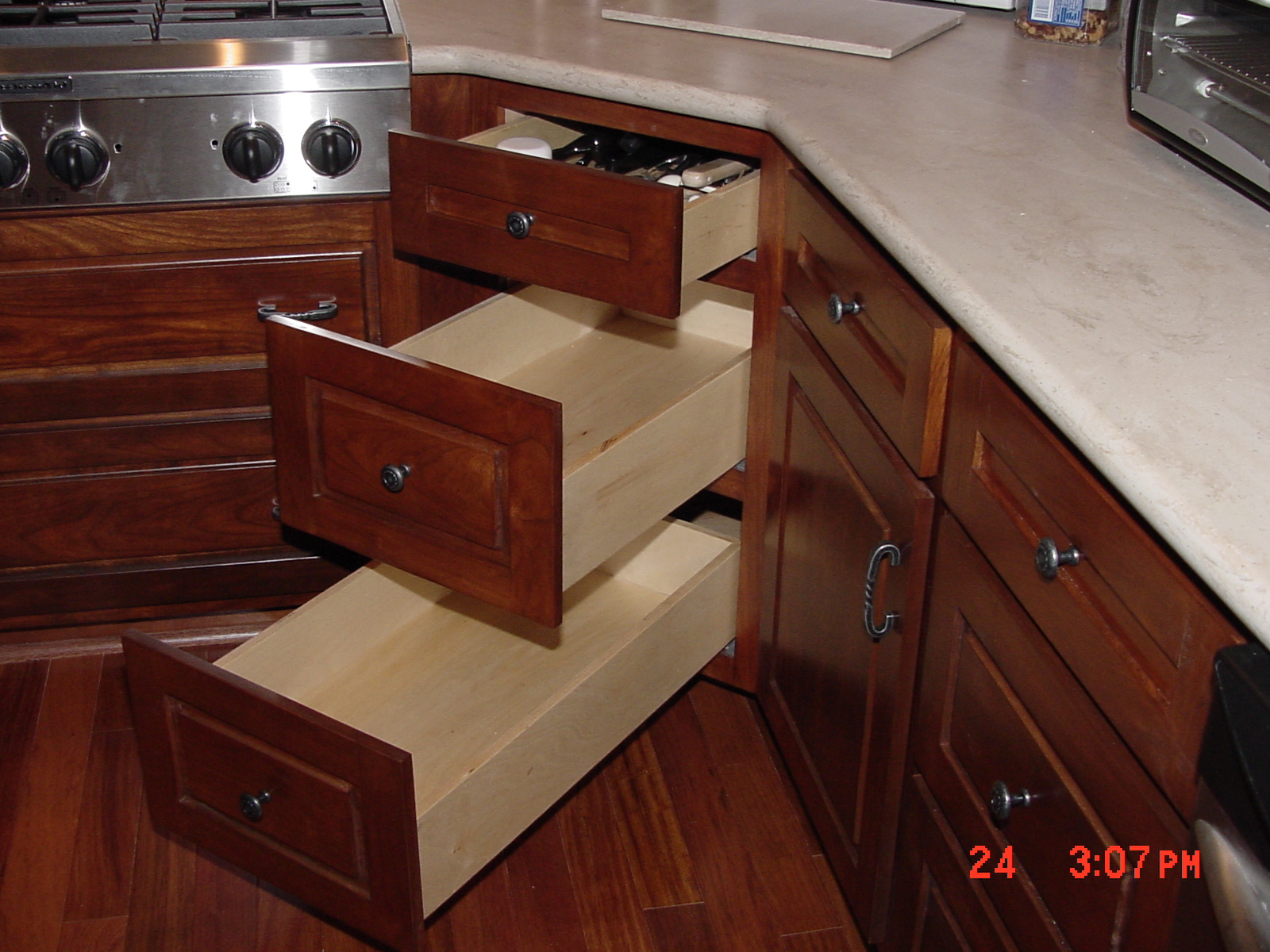

I can't understand why lazy susans are so popular. I place a 17" W X 31" deep base cabinet on a 45degree ange in the corner and place 3 drawers in it with either 27" or 30" Blum full extension soft close slides in it. It gives the customer full access to everything and at least twice the storage capacity. Hopefully an image uploaded successfully for a visual.

View higher quality, full size image (1600 X 1200)

4/15/14       #5: Blind corner pull outs ...
mike  Member


what is the back measurement to get the 17" front? Normal lzy susans are 36x36

4/15/14       #6: Blind corner pull outs ...

1)easy access to items stored inside
2)looks really slick!

1)pullout shelves themselves are really small, can't fit much more than small pans on them.
2)expensive as heck
3)you probably lose about half of the available storage in that area!

I've done them only on a couple kitchens as I usually do smaller kitchens and space is at a premium. As slick as they are, they're just not a great use of storage space.

Also FWIW, not that we're talking about lazy susans here, but they do make much better use of space than corner drawers. If you measure out the actual volume of storage the drawers come out well behind. They also don't allow you to store anything large as lazy susans do. They're another impractical use of space and work best IMHO in large kitchens where space is not at a premium.

good luck,

4/16/14       #7: Blind corner pull outs ...
Scott Markwood


It is hard to beat the LeMans from Kessebohmer. It installs in less than ten minutes using a steel gauge that's included and requires ZERO measurements. If you are in the USA you can find it at Hafele America. Click on the video link below to see how the gauge is used.

View larger image

VIDEO: Installing LeMans with Gauge

4/28/14       #8: Blind corner pull outs ...
bobbywood Member

I've used both. the 1/2 moon is good, and the price is reasonable. the magic corner is better, though not sure it is worth the price. Really depends on what they plan to put in there.
